IM1

John Deere 1720 CCS Planter Mount

Tank Size	Mount Part #	Saddle Part #	Tank Part #
200 Gallon x 38″	IM1	ST27	T6
300 Gallon x 38″	IM1	ST5	T1

IM2

Previous

Next

Case 1250 & 1260 Planter Tongue Mount

Tank Size	Mount Part #	Saddle Part #	Tank Part #	Adapter Bracket
200 Gallon x 38″	IM2	ST47	T6	IM10
300 Gallon x 38″	IM2	ST41	T1	None
400 Gallon x 42″	IM2	ST45	T3	None
500 Gallon x 48″	IM2	ST30	T13	IM10

IM3

Case 1255 12&16 Row Planter Tongue Mount Bulk Fill

Tank Size	Mount Part #	Saddle Part #	Tank Part #	Adapter Bracket
200 Gallon x 38″	IM3	ST47	T6	IM10
300 Gallon x 38″	IM3	ST41	T1	None
400 Gallon x 42″	IM3	ST45	T3	None
500 Gallon x 48″	IM3	ST30	T13	IM10

Previous

Next

IM4

Inline Planter Tongue Mount

Tank Size	Mount Part #	Saddle Part #	Tank Part #
300 Gallon x 38″	IM4	ST18	T1
400 Gallon x 42″	IM4	ST19	T3
500 Gallon x 48″	IM4	ST30	T13

*Bolt Length Depends on dimensions of the bar

IM5

Case 1255 Planter Tongue Mount No Bulk Fill

Tank Size	Mount Part #	Saddle Part #	Tank Part #
200 Gallon x 38″	IM5	ST47	T6
300 Gallon x 38″	IM5	ST41	T1
400 Gallon x 42″	IM5	ST45	T3
500 Gallon x 48″	IM5	ST30	T13

Previous

Next

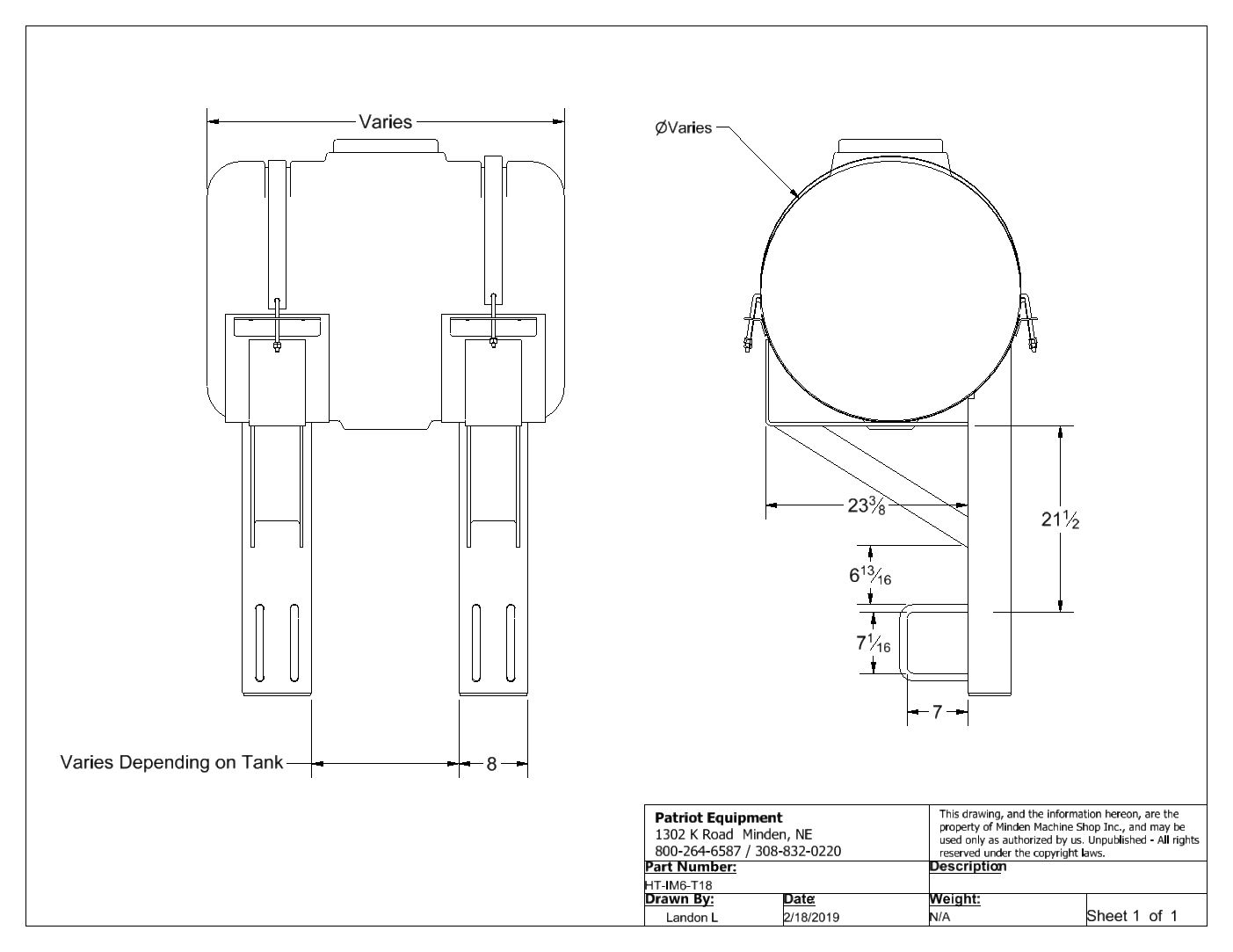

IM6, IM7, & IM8

30″, 32″, and 38″ Saddle/Mount Combo

Tank Size	Mount Part #	Tank Part #
110 Gallon x 30″	IM6	T18
150 Gallon x 32″	IM7	T8
200 Gallon x 32″	IM7	T9
200 Gallon x 38″	IM8	T6
300 Gallon x 38″	IM8	T1

IM9

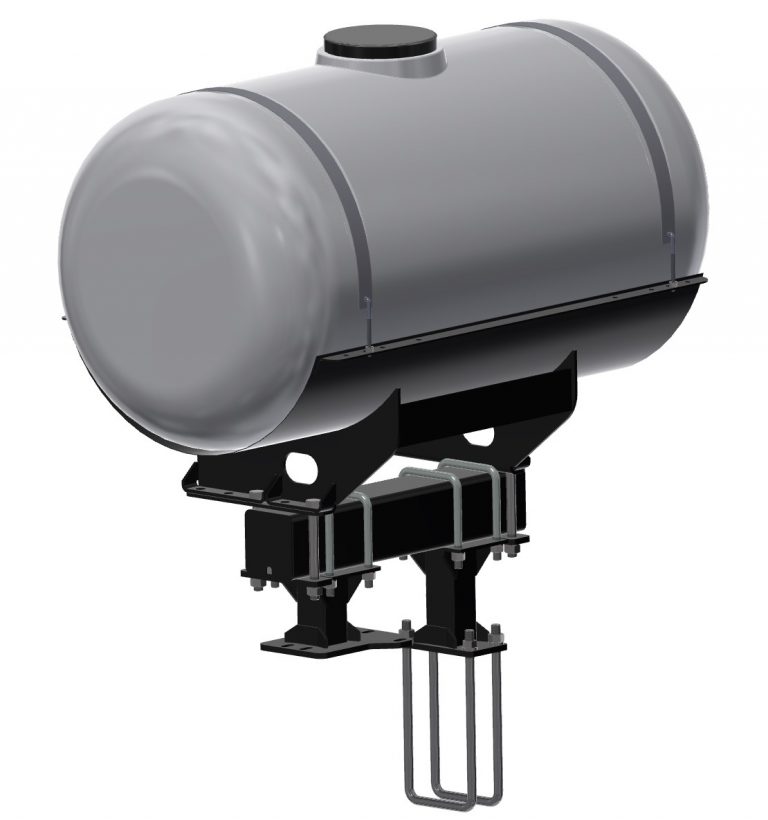

Tool Bar Straddle Bracket

Tank Size	Mount Part #	Saddle Part #	Tank Part #
200 Gallon x 38″	IM9	ST27	T6
300 Gallon x 38″	IM9	ST5	T1
400 Gallon x 42″	IM9	ST6	T3
500 Gallon x 48″	IM9	ST50	T13

Previous

Next

IM11

Case 1255 24 Row Planter Tongue Mount Bulk Fill

Tank Size	Mount Part #	Saddle Part #	Tank Part #	Adapter Bracket
200 Gallon x 38″	IM11	ST47	T6	IM10
300 Gallon x 38″	IM11	ST41	T1	None
400 Gallon x 42″	IM11	ST45	T3	None
500 Gallon x 48″	IM11	ST30	T13	IM10
