Nurse Tank Trailers
Patriot Nurse Tank Trailers allow you to easily haul bulk liquid to the next field. All trailers are DOT compliant and come with a 1 Year trailer warranty and a 3 year tank warranty.
Previous
Next

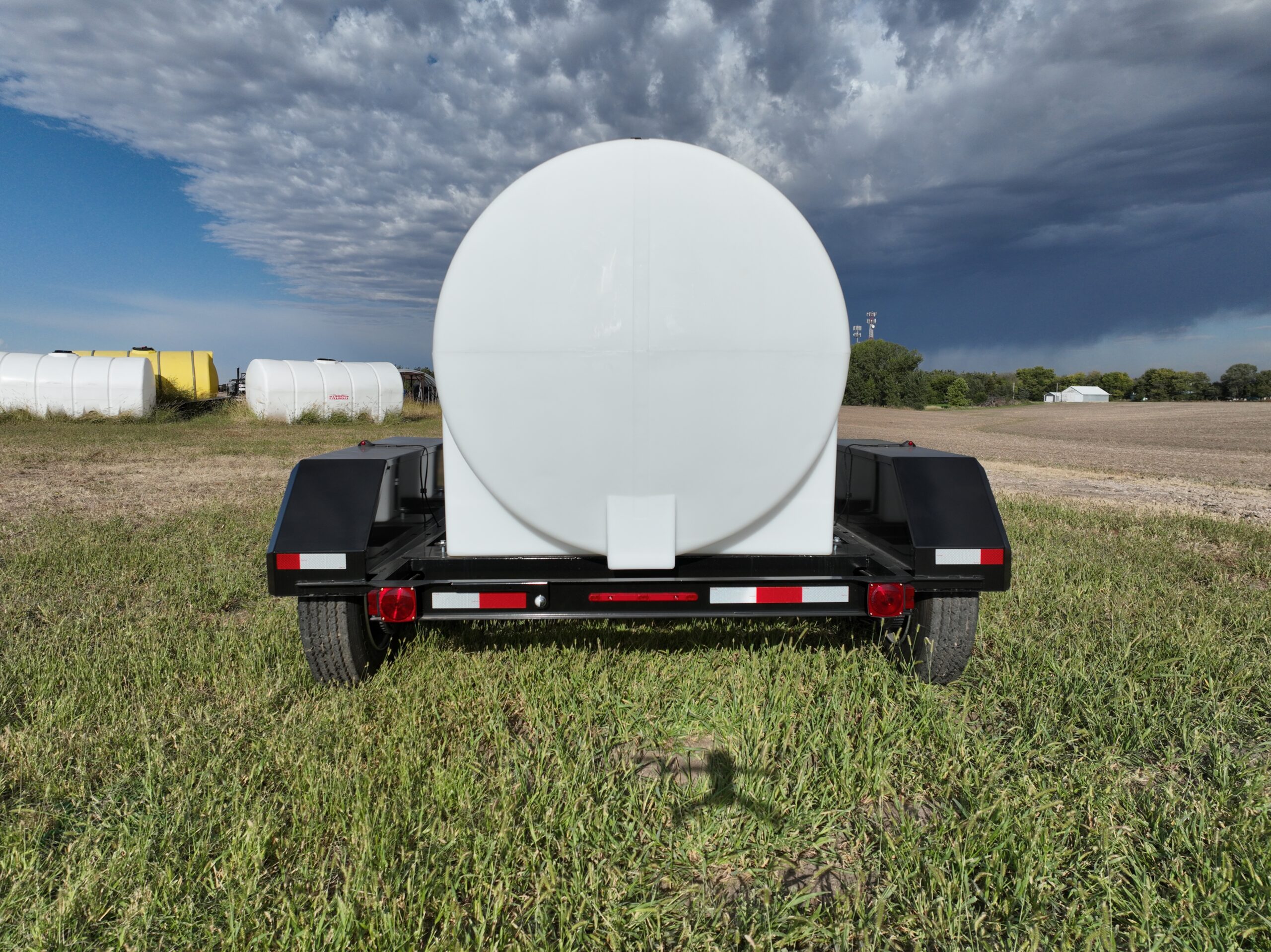

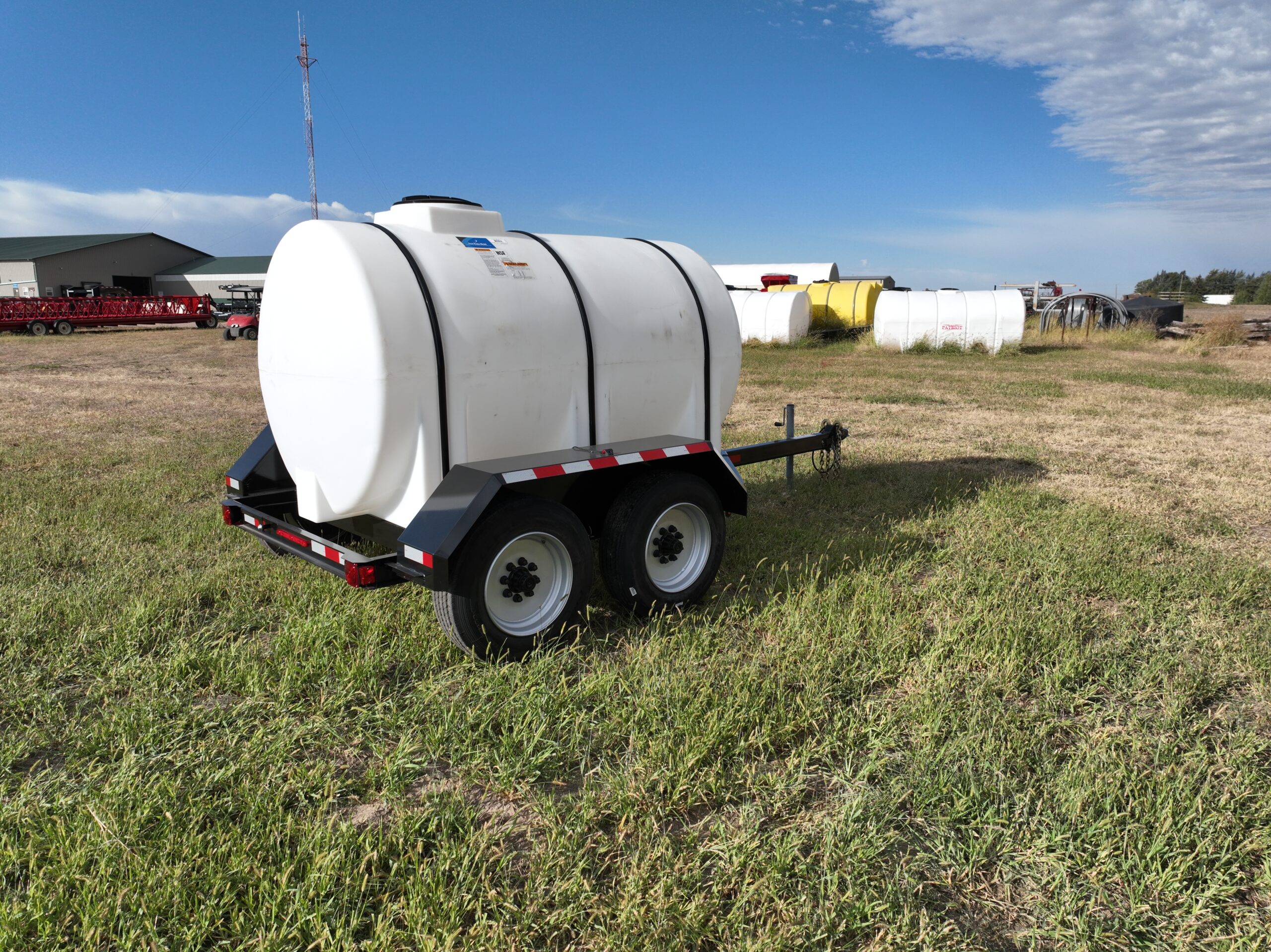

NT1065
The NT1065 Nurse Tank Trailer can hold a 1065 gallon tank.
- 1065 Gallon Completely Drainable Tank
- Dual 8k Torsion Axles
- Dual 215/75R17.5 on 8 Bolt Rim 16 Ply Tires
- 2 5/16 Inch Ball Coupler
- DOT Compliant
- Pump And Hose Brackets
- 1 Year Warranty On The Trailer
- 3 Year Warranty On The Tank
- Plumbing Kit

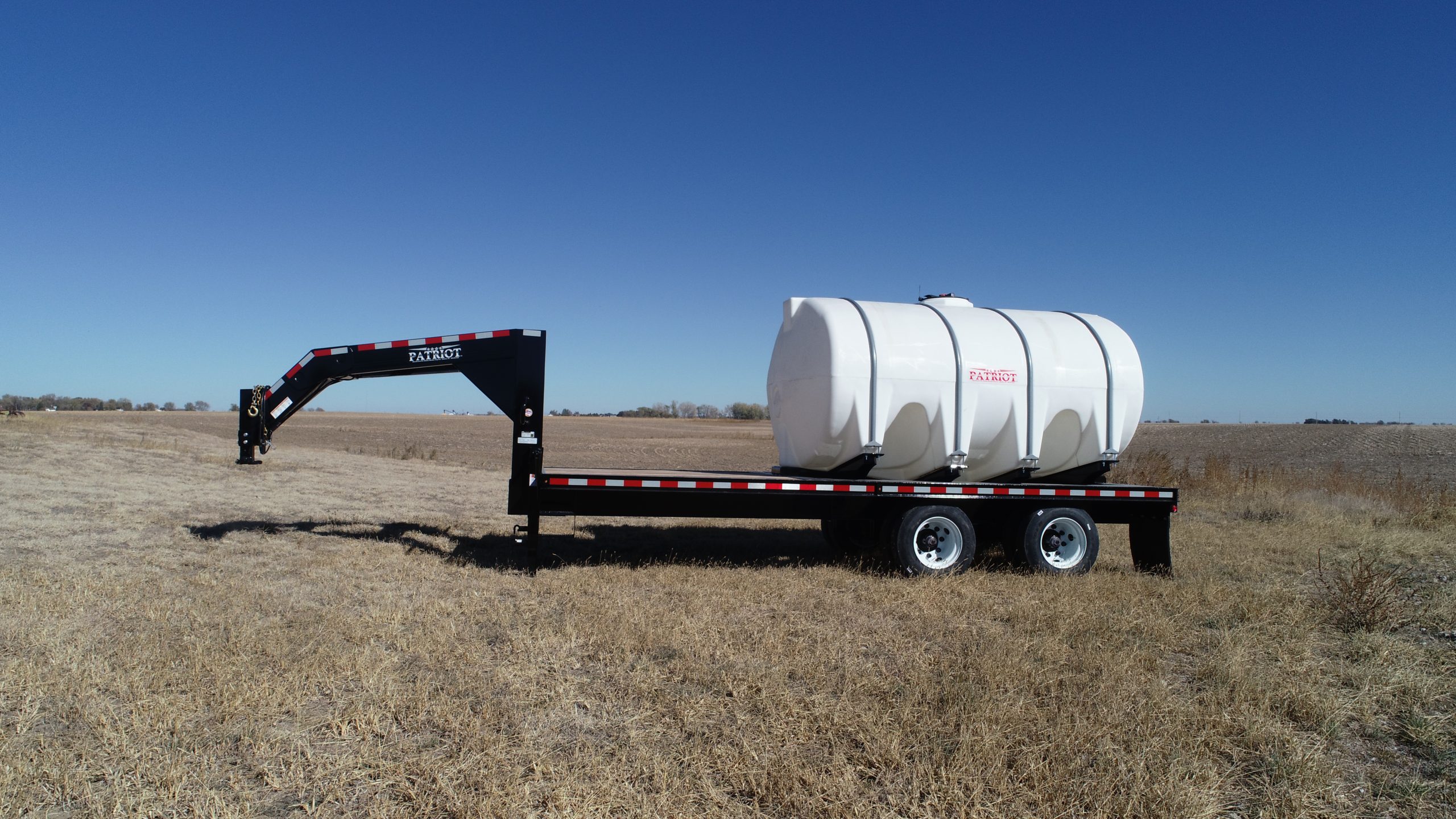

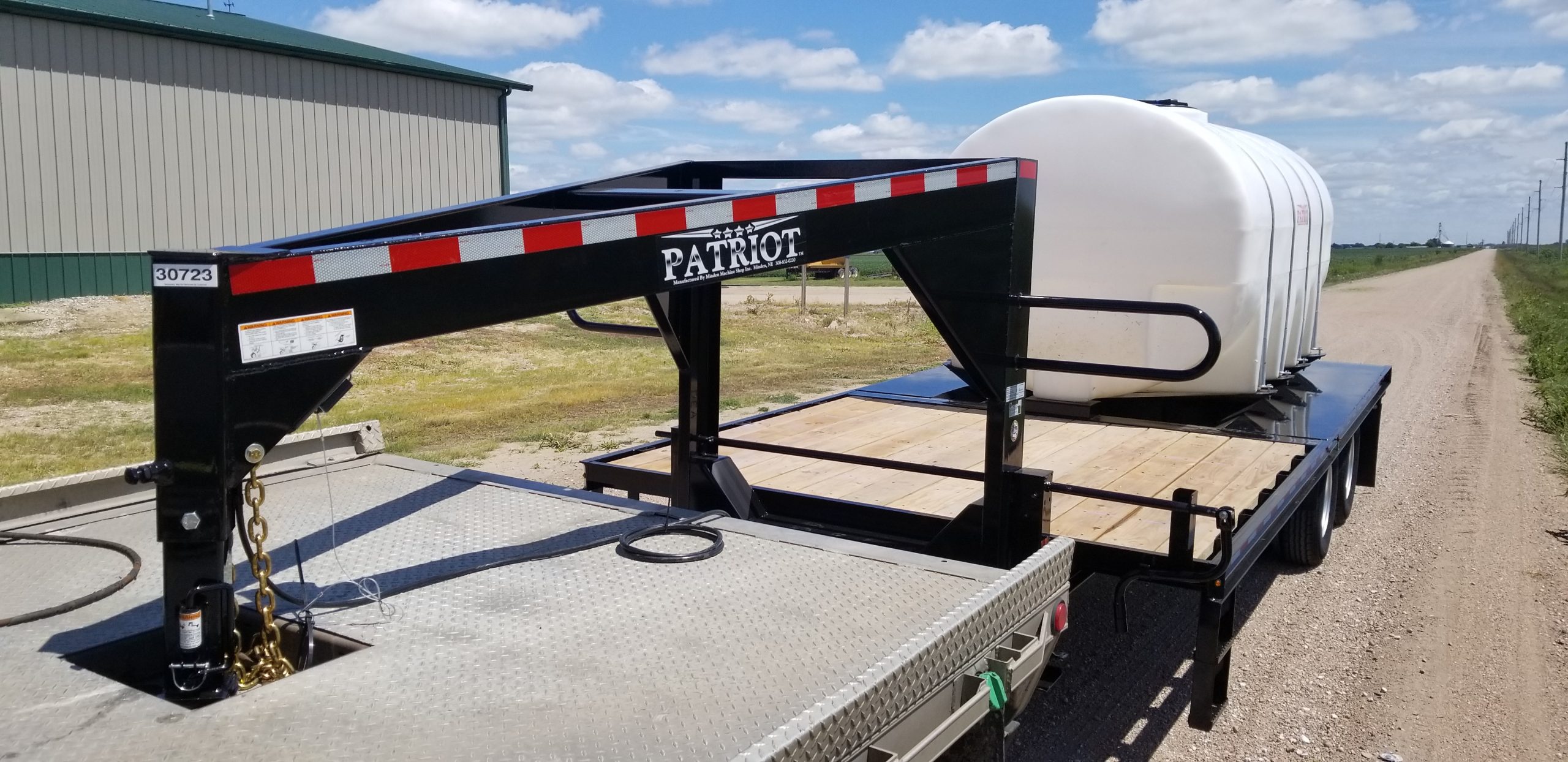

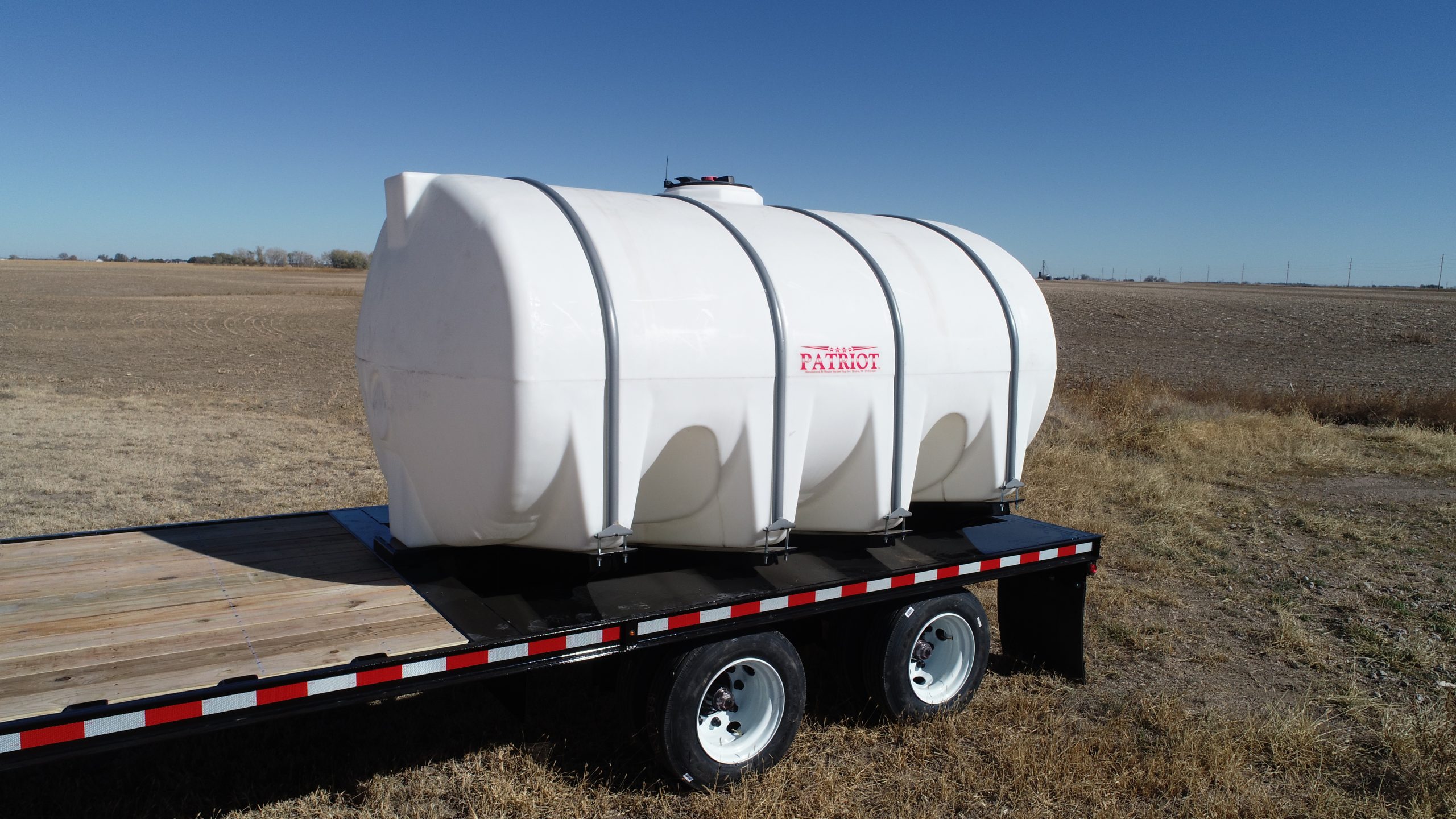

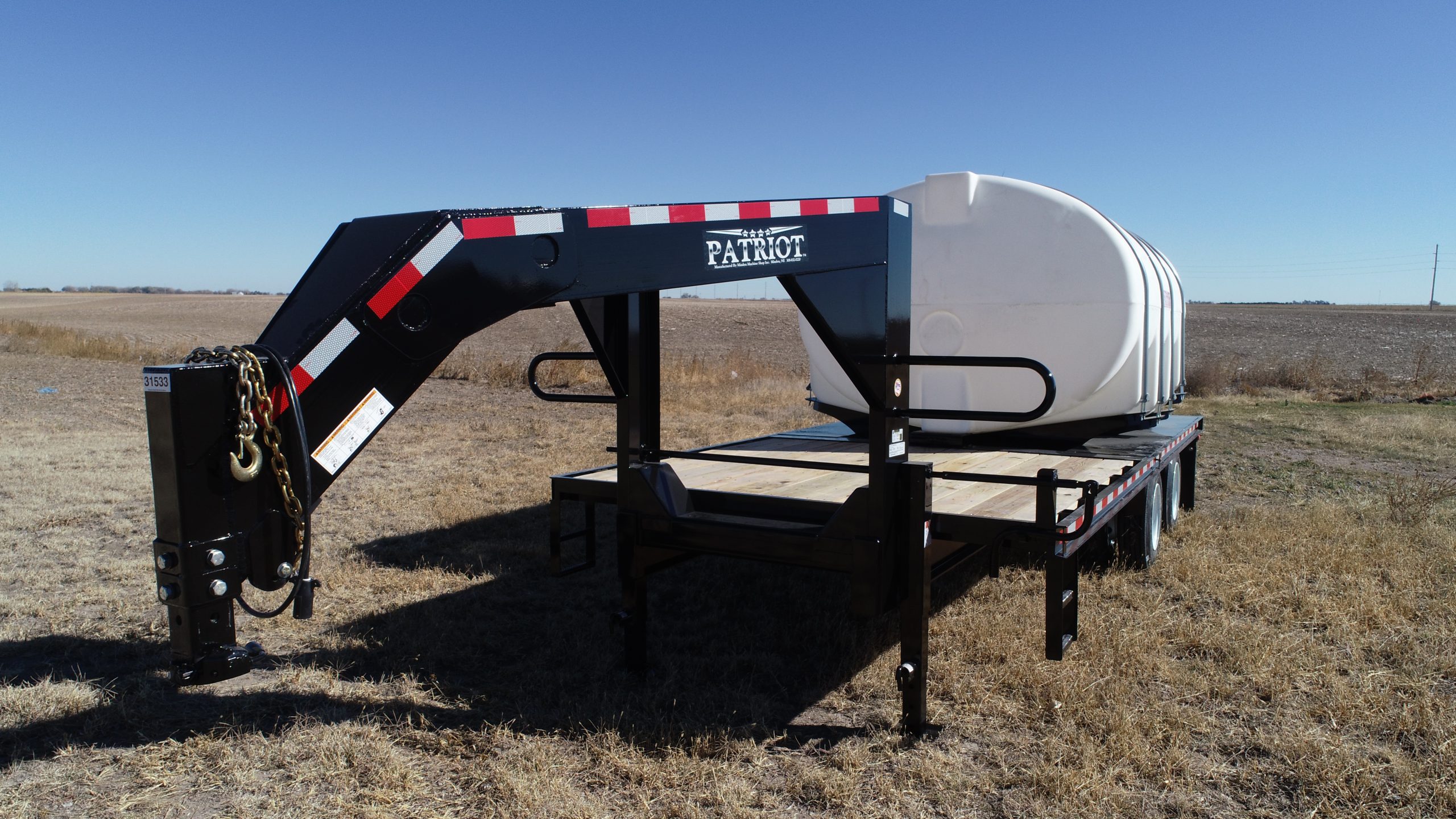

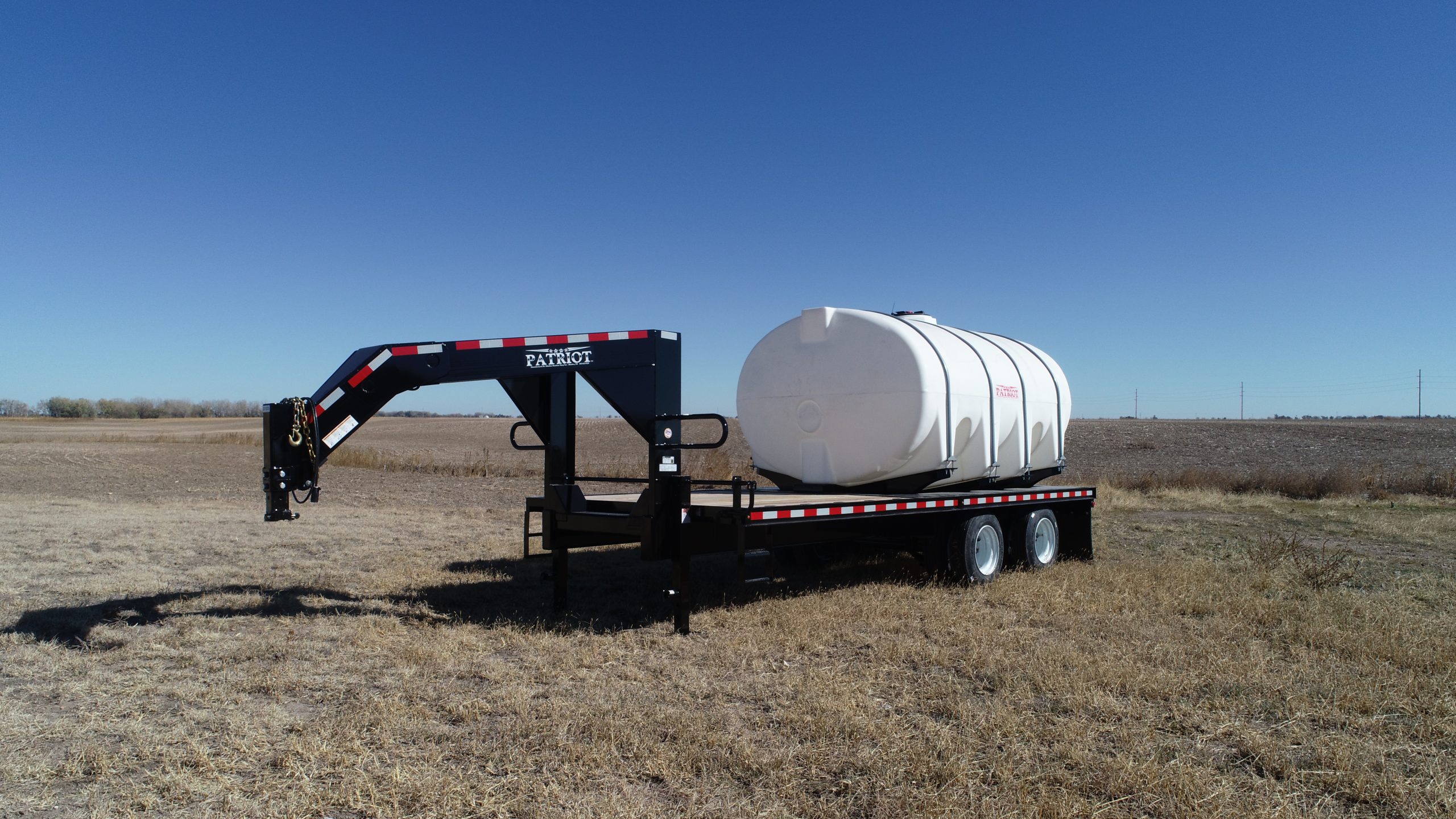

GN1620
The GN1620 Nurse Tank Trailer can hold a 1600 or a 2000 gallon tank and has 92″ of wood deck.
- 1600 Or 2000 Gallon Completely Drainable Tank
- Dual 12k Torsion Axles
- Dual 235/80R16 10 Ply Tires
- 2 5/16 Inch Ball Coupler
- A-Frame Gooseneck
- Mud Flaps
- Easy Access Ladder

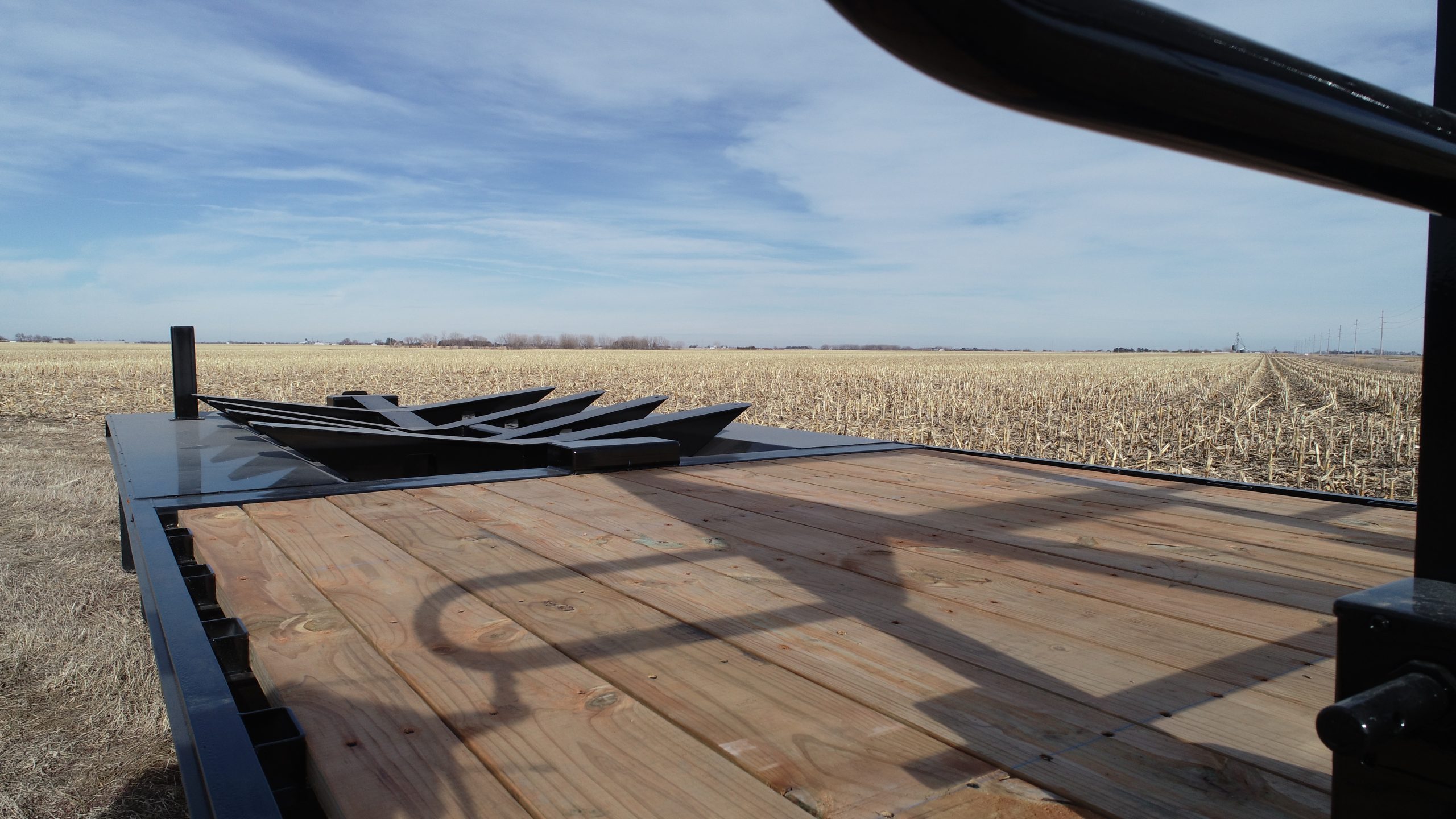

- Wood Deck Made From 2×6 Treated Cedar
- DOT Compliant
- Pump And Hose Brackets
- 1 Year Warranty On The Trailer
- 3 Year Warranty On The Tank
- Dual 235/80R16 14 Ply Tires
- Plumbing Kit
Previous
Next
Previous
Next
GN2610
Holding 2610 Gallons of liquid and 92″ of wood deck, the GN2610 is our biggest Nurse Tank Trailer.
- 2610 Gallon Completely Drainable Tank
- Dual 16k Torsion Axles
- Dual 215/75R17.5 16 Ply Tires
- 3 Inch Ball Coupler
- A-Frame Gooseneck
- Mud Flaps
- Easy Access Ladder
- Wood Deck Made From 2×6 Treated Cedar
- DOT Compliant
- Pump And Hose Brackets
- 1 Year Warranty On The Trailer
- 3 Year Warranty On The Tank
- Plumbing Kit
Plumbing Kit
Kit Includes:
- 3” Pump With 8 HP Honda Motor (May Be 13 HP Tecumseh Or Briggs And Stratton Motor Depending Upon Availability)
- 3” “Y” Strainer
- Separate Valves On The Tank Connections
- 3” Fill Line To Tank
- 3” Supply Line From Nurse Tank Trailer Pump
- Open Deck
- 35 Gallon Induction Tank
- 3” Return Line To The Main Tank
- Hose Hangers On The Trailer To Retain Hose When Transporting
- The Supply Line Valve From The Nurse Tank Trailer Will “Lock” Onto The Trailer Deck
- All Inlet And Exit Valves Will Be Capped To Keep Connections Clean
- Hose For The Fill And Supply Lines
- 1” Rubber Hose For The Rinse Line For The Induction Tank
- Manifold Connections
Get Instant Pricing!
Build Your Nurse Tank Trailer
Total:
This Price Does Not Include Freight
